Digital controller
Strong handles

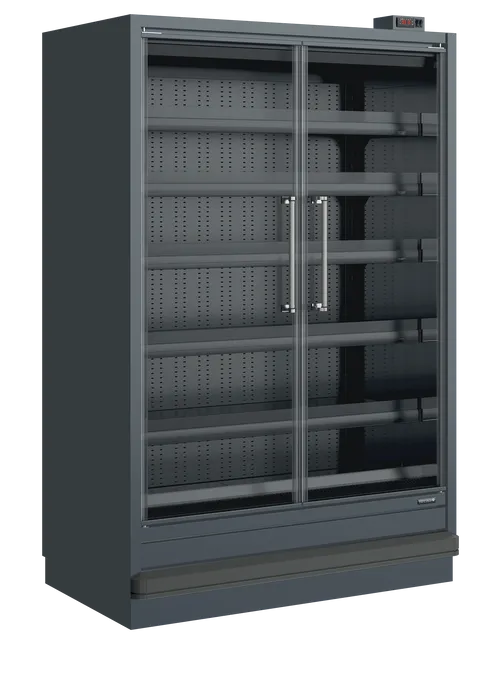

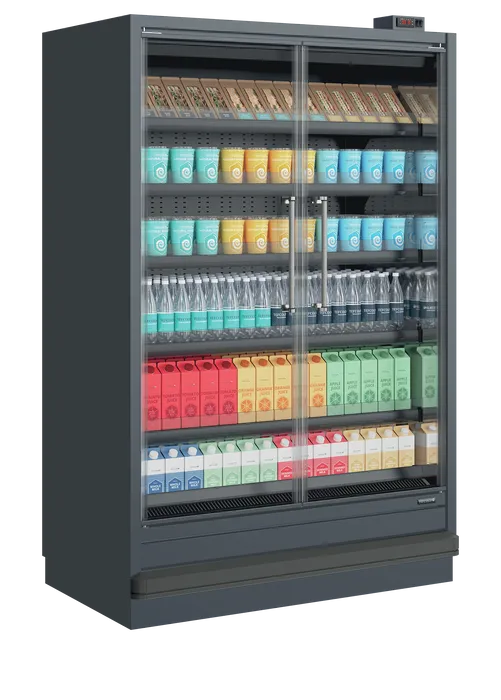

Remote Multideck - Extended Height
Trojan T14 FGD EHA
Item no.: 68199
Brand: TEFCOLD
- Colour is anthracite RAL7016
- Requires remote refrigeration system (not supplied)
- Horizontal LED lighting
- Frameless glass doors for great product visibility
- Adjustable shelves, max weight 160kg/sq metre
- Shelves can be flat or angled to 7° or 14°
- Solid 40 mm endwalls with mirrored interior
- Digital controller and temperature display
- Can be multiplexed with kit (POA)
- EPOS Ticket strips & shelf risers
- Extraction rate 650w/per metre
- Fully automatic, fan assisted cooling
- Next day delivery available on product
- Unpack & Position£ 105.00
- Remove & Dispose£ 130.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight303 / 285 kg
- Total Display Area2.16 m²
- Temperature Range-1 to +5 °C
- Climate Class3
- Gross / Net Volume/ l
Design and Material
- Exterior FinishAnthracite RAL7016
- Interior FinishAnthracite RAL7016
- Door Number & Type2 hinged glass door
- Shelf ColorAnthracite
- Shelf Dimensions5 x 450 mm
- Shelves Number & Type5 adjustable
Cooling and Functions
- Type of DefrostAutomatic
- RefrigerantR449a
- Refrigerant ChargeREMOTE g
Power and Consumption
- Energy ClassC
- EPREL No2345031
- Max Ambient25°C at 60% RH
- Annual Energy Consumption3292 kWh/year
- Energy Consumption9.02 kWh/24h
- EEI27.28 %
- Voltage / Frequency220-240/50 V/Hz
Dimensions
- External Dimension (WxDxH)1250 x 784 x 2236 mm
- Packed Dimension (WxDxH)1350 x 750 x 2390 mm
- 40ft Container Load 24 pcs
- GTIN / EAN5708181753443
- Product Group - Delivery servicesGroup 3A
- Internal Dimension (WxDxH)1250 x 450 x 1738 mm
Downloads
Description
Spare parts
- 01Item no. 68225End Wall Right H:2180
- 01Item no. 68226End Wall Left H:2180
- 03
Item no. 42199LED Tube T8 L=1200mm 20W - 03Item no. 44855Canopy T8 led tube 1200 mm OSRAM red color
- 04Item no. 68230Back Panel Top W:1250 H:2180
- 05Item no. 42333Shelf LED Kit 1250mm
- 05Item no. 42339Shelf LED Bar 4000K 1250mm
- 05Item no. 42340Shelf LED Bar Red 1250mm
- 06Item no. 68232Shelf Anthracite
- 06Item no. 68234Shelf Support Anthracite
- 07Item no. 68253Shelf Bracket Anthracite
- 08Item no. 42350Shelf Riser Set Plexi 4x50x1235mm
- 08Item no. 67830Perspex Riser 2 x 1250 mm
- 09
Item no. 48230Shelf Price Tag Holder L=1250 - 10Item no. 68236Back Panel Bottom W:1250 H:2180
- 11Item no. 68281Base Pate - RAL7016
- 12Item no. 42358Air Return Grid
- 13
Item no. 42360Side Plint Right - 13
Item no. 42361Side Plint Left - 14
Item no. 42351Side Plint Plastic Gasket - 15Item no. 42362Bumper End Left
- 15Item no. 42363Bumper End Right
- 16Item no. 42153Adjustable Feet
- 17Item no. 68238Back Panel Middle W:1250 H:2180
- 18Item no. 42368Front Panel
- 19Item no. 42369Bumper Plastic
- 20Item no. 42372Front Plexi 8x100x1245mm
- 21Item no. 42374Front Plint
- 22Item no. 42375Front Plint Gasget
- 23Item no. 68250Blok End Wall Right H:2180
- 23Item no. 68251Blok End Wall Left H:2180
- 25Item no. 42379Top Panel
- 25Item no. 42380Top Panel for Slider Door
- 29Item no. 42231Probe Dixell NTC 3MT
- 29Item no. 42232Probe Dixell NTC 6MT
- 30Item no. 42254Evaporator
- 31Item no. 42259Magnetic Valve
- 31Item no. 68240Magnetic Valve (449 gas)
- 31Item no. 68242Valve orifice (449 gas)
- 31Item no. 68247Solenoid Valve (449 gas)
- 32Item no. 67823Digital controller XR60CH
- 33Item no. 42270Switch On/Off
- 34Item no. 42271Light Switch
- 35Item no. 42272Fan Motor
- 36Item no. 42273Fan Blade
- 37Item no. 42217Fan Ring Plastic Ø200
- 38Item no. 42218Finger Guard Plastic Ø200
- 39Item no. 67822Cable for Undershelf Lighting w:938 / w:1250
- 41Item no. 67825Pre-wiring group cable (for 5 LEDs)
- 43Item no. 68260Door with transperant spacer h: 2180 Right 1250mm Anthracite
- 43Item no. 68261Door with transperant spacer h: 2180 Left 1250mm Anthracite
- 44Item no. 43608Door Handle
- 45Item no. 44962Door bottom hinge left
- 45Item no. 44963Door bottom hinge right
- 46Item no. 44967Door top hinge sky right
- 46Item no. 44968Door top hinge sky left
- 47Item no. 67419Vertical Door Gasket
- 48Item no. 68263Top and Bottom Body Gasket w: 1250
- 50Item no. 44865Hanging profile 400 mm
- 51Item no. 68267Hook For Price Holder Ø 5mm
- 52Item no. 448661250 mm supporting bar for hook and hanging profile
