Adjustable shelves
Ventilated cooling

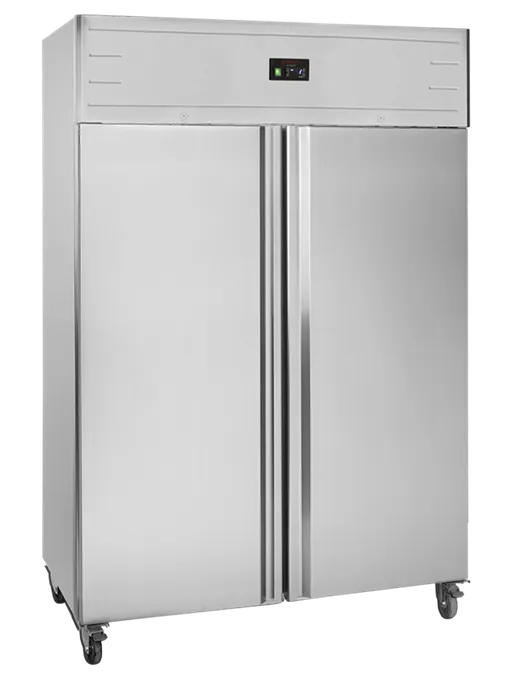

Gastronorm Upright Freezer
GUF140
Item no.:30810
Brand:G-Line by TEFCOLD
- Fully automatic
- Fan assisted cooling
- Lock
- Adjustable shelves (split level)
- Castors
- Digital controller and temperature display
- Accepts 2/1 Gastronorm shelves/pans
- Replaceable door gasket
- Next day delivery available on product
- Unpack & Position£ 50.00
- Remove & Dispose£ 162.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight160 / 140 kg
- Gross / Net Volume1166 / 1056 l
- Temperature Range-24 to -18 °C
- Climate Class4
Design and Material
- Exterior FinishStainless steel
- Interior FinishStainless Steel
- Door Number & Type2 hinged self-closing solid doors
- Door ReversibleNo
- Shelves Number & Type6 wire shelves
- Shelf ColorWhite
- Shelf DimensionsGN2/1
- Max load on Shelves110 kg/m²
- Castors4 wheels, 2 with brake
- Lock
- Interior LightNo
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge145 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No107315
- Max Ambient+30°C, 55% RH
- Energy Consumption8.25 kWh/24h
- Annual Energy Consumption3011 kWh/year
- EEI62.4 %
- Power13 Amp
- Input Power730 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- 40ft Container Load 21 pcs
- GTIN / EAN5708181362065
- Product Group - Delivery servicesGroup 4
- External Dimension (WxDxH)1340 x 867 x 1995 mm
- Internal Dimension (WxDxH)1220 x 680 x 1384 mm
- Packed Dimension (WxDxH)1400 x 880 x 2070 mm
Downloads
Spare parts
- 01Item no. 55819Down Hinge Axis Jacket
- 02
Item no. 11916Door - 03
Item no. 12042Door Gasket 635x1450 mm. - 04Item no. 68149Door Spring Hinge
- 05
Item no. 12999Up Hinge Left - 06
Item no. 13003Up Hinge Right - 07
Item no. 10725Lock With Keys - 08
Item no. 12188Door Switch - 09
Item no. 11016Front Panel - 10
Item no. 13754Main Switch - 11
Item no. 32570Thermostat XR06CX-5R0C1-HT - 12
Item no. 33051Inside Panel - 13
Item no. 54691Water Box Cover - 14
Item no. 11425Condenser Water Pan - 15Item no. 11430Defrost Water Coil
- 16Item no. 10037Clip for Evaporation Coil
- 17
Item no. 10022Filter 215x205 - 18
Item no. 15724Filter Drier 25 G - 20
Item no. 32899Condenser - 21
Item no. 32627Condenser Fan - 22
Item no. 13305Basket Guard Grill - 23
Item no. 32576Compressor SC21CNX.2 - 25
Item no. 14476Evaporator Support - 26Item no. 14316Evaporator
- 27
Item no. 14472Evaporator Water Pan - 29Item no. 14474Drip Tray Insulation
- 30Item no. 13457Evaporator Fan Support
- 31
Item no. 13255Drain Pipe Heater 1300 mm - 32
Item no. 11594Male-Threaded Drain Pipe - 33
Item no. 11557Female-Threaded Drain Pipe - 35
Item no. 32529Basket Guard Grill - 36Item no. 32425Evaporator Fan 12 VDC
- 37
Item no. 54681Water Pipe - 38
Item no. 14414Evaporator Cover - 39Item no. 13565Finger Guard
- 42Item no. 15063Shelf 534x640mm
- 44
Item no. 12556Support Guide - 45Item no. 14601Leg 115-170 mm (4 Pcs) - Before 03-2024
- 45
Item no. 14686Wheels (4 Pcs) - 45Item no. 54750Leg 150-210 mm (4pcs) - After 03-2024
- 46
Item no. 12822Down Hinge - 48Item no. 34229Hinge Axis Slet
- 50
Item no. 34481Drain Pipe Cover - 51Item no. 34237Sensor 13896
- 51Item no. 51615Sensor
- 55Item no. 33053Middle Post
- 56Item no. 14543Suction Pipe
- 57
Item no. 13284Protector
